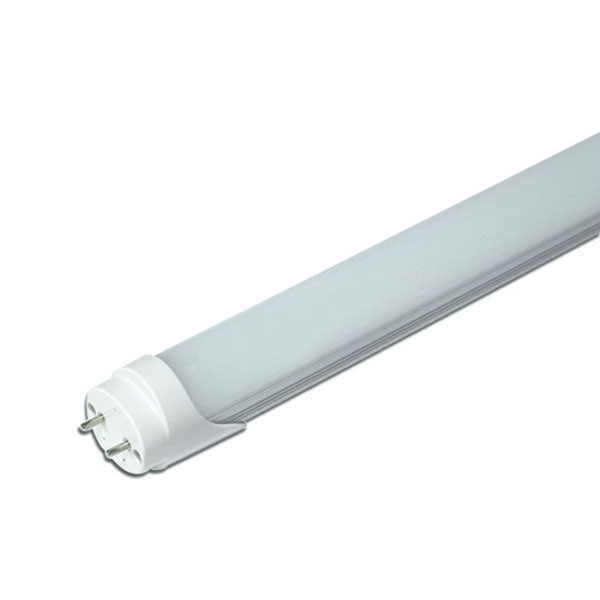

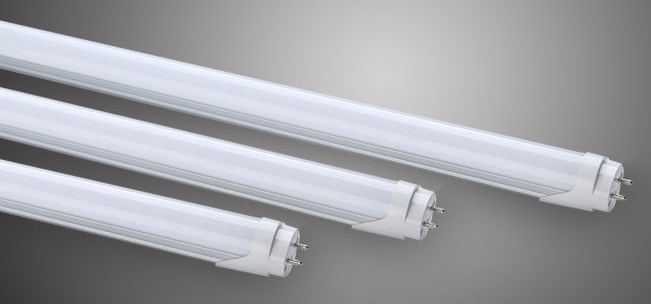

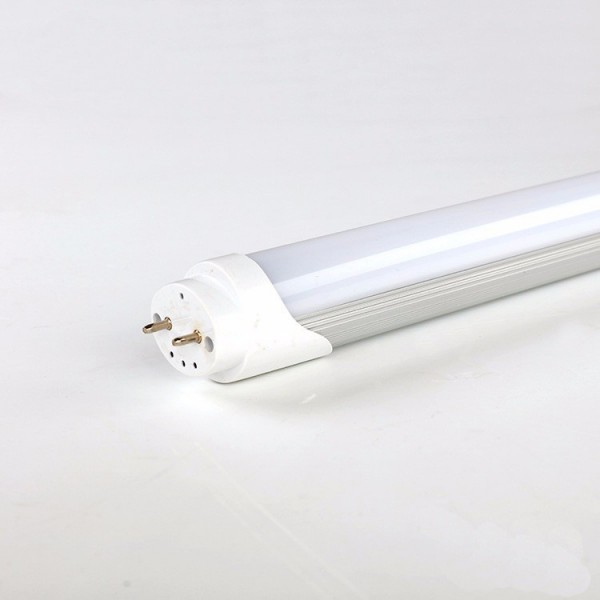

AC85-265V Ceiling light led fluorescent light fixture batten fitting 18w 4ft fixture

Description

AC85-265V Ceiling light led fluorescent light fixture batten fitting 18w 4ft fixture

Features

LED Tube replacement is the best choice for you to replace your old fluorescent T8 tube to clean,efficient LED technology.MINSENS has the best prices on LED T8 Tube lights,with good quality.Offering more than 80% energy saving and lower maintenance costs.Upgrade to LED Tube technology today!

1. Support trade assurance orders
2. High power factor ≥0.95,THD<15%
3. Light source: Epister 2835 smd LED
4. High efficiency, up to 130 lm/W
5. High CRI: Ra>80
6. Viewing angle: 120-180degree
7. Voltage: AC85-265V
8. Colour(CCT): W=3045±175K, N=3985±275K, D=5028±283K
9. Aluminum base for good heat dissipation of LEDs
10. Warranty: 3 years.
11.Approved by UL,RoHS,CE



Details







Technical Details

Model	Length	LED type	LED Quantity	Voltage	Watts	Lumens	CRI	THD	PF
MS-T8-600	600mm	SMD2835	60	AC100-277V AC277-347V	9W	1080lm	>80	<20%	>0.95
MS-T8-900	900mm	SMD2835	96	AC100-277V AC277-347V	14W	1680lm	>80	<20%	>0.95
MS-T8-1200	1200mm	SMD2835	120	AC100-277V AC277-347V	15W	1800lm	>80	<20%	>0.95
					18W	2160lm 2640lm
					22W
MS-T8-1500	1500mm	SMD2835	144	AC100-277V AC277-347V	22W	2640lm	>80	<20%	>0.95
MS-T8-1800	1800mm	SMD2835	192	AC100-277V AC277-347V	26W	3120lm	>80	<20%	>0.95
MS-T8-2400	2400mm	SMD2835	240	AC100-277V AC277-347V	36W	4320lm	>80	<20%	>0.95

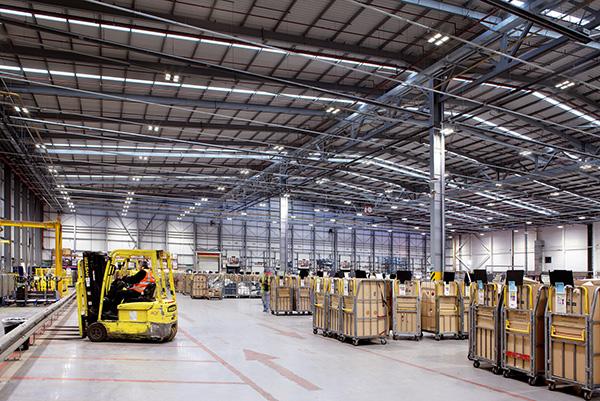

Applications

1.Living room, bedroom, kitchen, washroom;
2.School, university, hospital, hotel;
3.Conference, meeting room, show room, showcase;
4.Commercial complexes;
5.Factory, plant, warehouse, office;
6.Supermarket, department store;

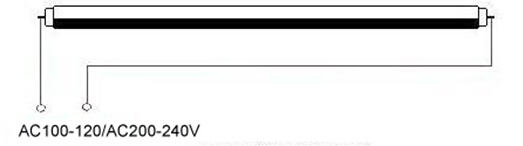

Installation of LED Tube Light

The same size tube can be installed on to the corresponding lamp holder directly before taking down fluorescent lamp starter.
1. LED tube can be directly installed into T8 or T10 bracket(take down fluorescent lamp starter);
2. LED tube light apply to inductive light holder. Electronic ballast fluorescent tube can’t be replaced directly. Should take down electronic ballast.



Packaging & Shipping

Standard export packing, color box or neutral white box
