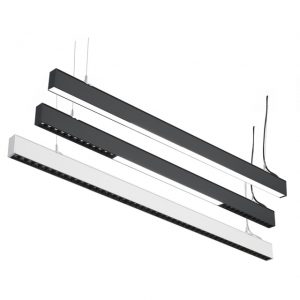

Anti-glare Dimmable Pendant Led Linear Light For Conference Office Lighting
Anti-glare (UGR 2-4 )
Dimmable Pendant
Led Linear Light For Conference Office Lighting
600mm 1200mm 1800mm 2400mm
- Description
- Contact From
Description
Anti-glare Dimmable Pendant Led Linear Light For Conference Office Lighting
Features
linear led light fixture
1.Connect with seamless, form with line shape.

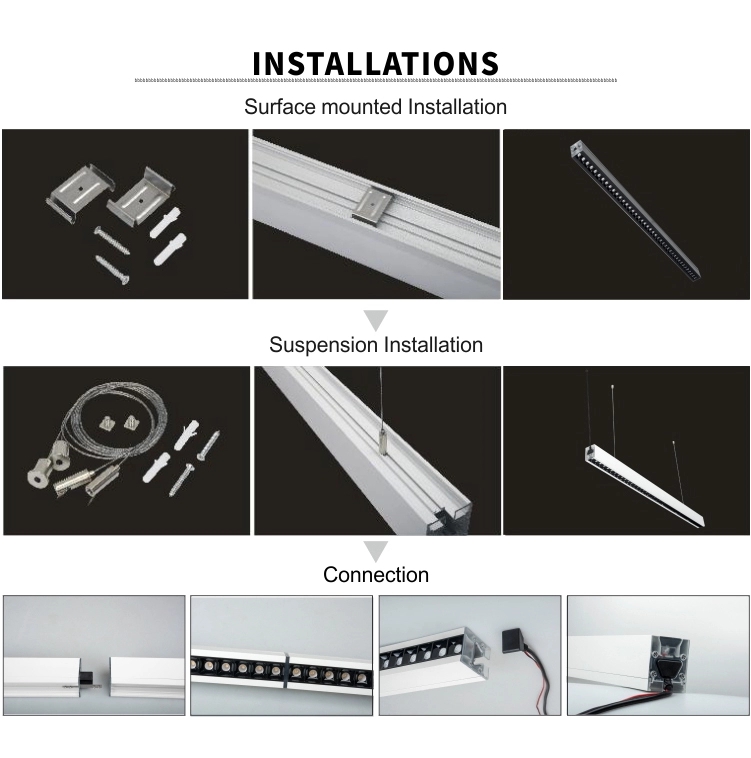

2.Product can be used hanging ,surface mounted, recessed installation.
3.Cap with PC plastic moulding , connect with PC cover with seamless which let the light can’t run out.
4.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.
5.PC cover transmitting rate reach 86%, luminous reach 110lm/w.
6.IC driver. No flicker, No glaring.CIR ≥ 80.PF ≥ 0.9 and corrosion.
6.Product passed TUV SAA CE FCC ROSH certifications.
LED linear light for Office Supermarket, Can be customized in a wide range of sizes
A. Shopping mall, supermarket, hotel lighting, office lighting etc.;
B. Family house, kithchen, warehouse, bathroom, corridor, garage;
C. Commercial show windows and bars, subway, airport, exhibition hall, gymnasium etc.
Technical parameters
LED Linear Light with Reflector optics
| led linear pendant 3570 | |
| Product name | LED Linear Light – 3570 |
| Product Model No | LS3567-PZ |
| Housing material | 6063-T5 |
| Surface treatment | Powder coated or Brushed aluminum |
| CCT | 3000K,4000K,6000K |
| LEDs | 2835SMD (SANAN chip) |
| LEDs Life Span | 50000H |
| Input Voltage | 100-277V/200-240V 50/60HZ |
| Power supplier | Flicker-free |
| Luminous Efficacy(lm/w) | 100lm/W |
| Color Render (CRI) | RA≥80 or RA≥90 |
| Power factory(PF) | ≥0.9 |
| Optional features : | 0-10V dimming, DALI dimming,CCT dimming |
| IP Rated | IP20 |
| Beam Angle | 120° (PC) |
| 34°(Reflector) | |
| Working Temp(℃) | Surrounding Ambiance Temperature -25°~40°Degree Celsius |
| Body Material | aluminum,PC,ABS |
| Color Option(shell) | Silver,White,Black |
| Certification | CE, RoHS |
| Limited Warranty | 3 Years |
| Standard specifications | ||||
| Model | Size | Watts | Voltage | CRI |
| 3570LS20W06-PZ | L605*W35*H70 | 20W | AC200-240V/100-277v | Ra>80/90 |
| 3570LS40W12-PZ | L1200*W35*H70 | 40W | AC200-240V/100-277v | Ra>80/90 |
| 3570LS60W18-PZ | L1795*W35*H70 | 60W | AC200-240V/100-277v | Ra>80/90 |
| 3570LS80W24-PZ | L2390*W35*H70 | 80W | AC200-240V/100-277v | Ra>80/90 |
Details

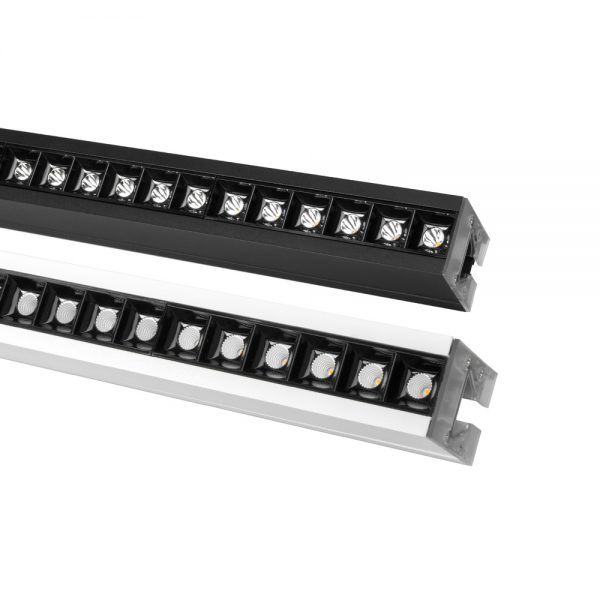

suspended linear led lighting
1.Quality famous branded LED SMD chip, high luminous efficiency, CRI>80/90, with uniform & comfortable light layout.
2.High quality profile, simple & exquisite design.
3.Optical lens or arcylic transparent solutions, high luminous efficiency, with good anti-glare effect.
4.Pendant or ceiling designs, easy for installing.
5.Can be directly spliced or combined in group, fit for different applications and specialised demands.
6.Can be dimmable or smart controlled, available for multiple applications.
7.Lifespan up to 35000hours, 3/5 years warranty
Applications
LED linear lighting Used for:
Office, gallery, hotel, restaurant, school, warehouse, shop, market, etc
Packaging & Delivery
Neutral packing, Or customize packaging according to customer requirements.
