Module Design 500w 600w 1000w 1200w High Mast Flood Light Led Outdoor Stadium Lighting

Module Design
500w 600w 1000w 1200w available
High Mast Flood Light
Led Outdoor Stadium Lighting

Description

Module Design 500w 600w 1000w 1200w High Mast Flood Light Led Outdoor Stadium Lighting



Features



Using LUMILEDS 5050,high lumen efficient reach to 150lm/w.

Meanwell driver provide superior performance,separate driver box design,better for heat dissipation and maintenance.

Various beam angle 10°/25°/45°/60° are available for optiomal,more uniform light distribution.Lamp cap available,avoid the light glare.

IP67 rating is applicable to outdoor environment.

Working environment in -35℃ to 55℃.

ETL/cETL/CE/RoHS/LM80/LM79/IES file are available.

More than 50,000 hours lifespan with 5 years warranty.



specifications

High Mast Flood Light Led Outdoor Stadium Lighting



Wattage 400W 500W 600W 750W 800W 1000W 1200W
Luminous Flux 64000lm 80000lm 96000lm 120000lm 128000lm 160000lm 192000lm
Color Temperature 2700K~6500K
Beam Angle 10°/25°/45°/60°
Input Voltage AC100-277V,AC200-480,50/60Hz
LED Brand LUMILEDS 5050/CREE XTE
Power Supply Meanwell
Life Hours 50,000
CRI Ra>75
PF >0.9
IP Rating IP67



Details

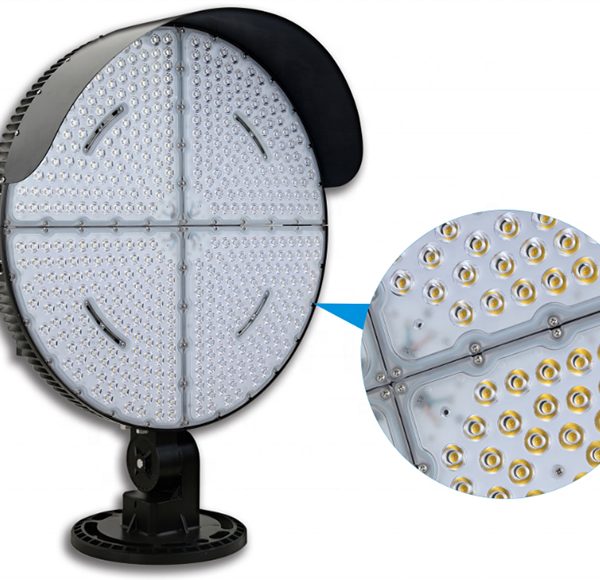

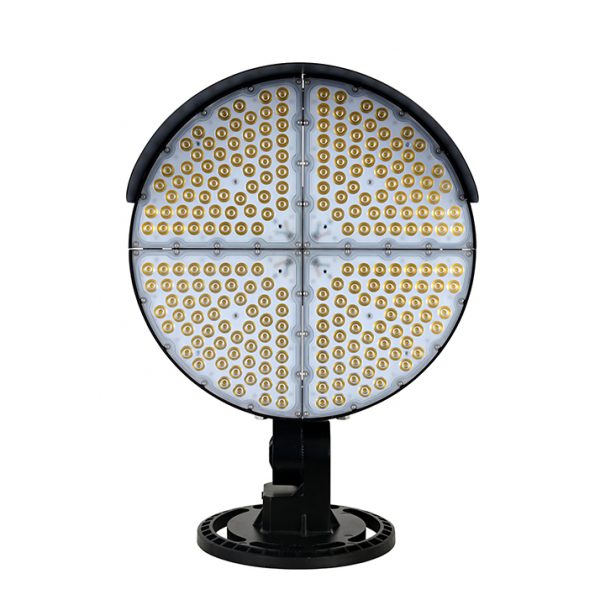

LED Stadium Sports lights

lens optional
Symmetrical PC lens:10°/25°/45°/60°

1060 Aluminum
Commercially pure aluminum, high aluminum content and purity, high corrosion resistance and high thermal conductivity. Outstanding performance, with excellent thermal conduction effect that general aluminum alloy can not be.

Beam angle
Module’s beam angle can be adjustable.

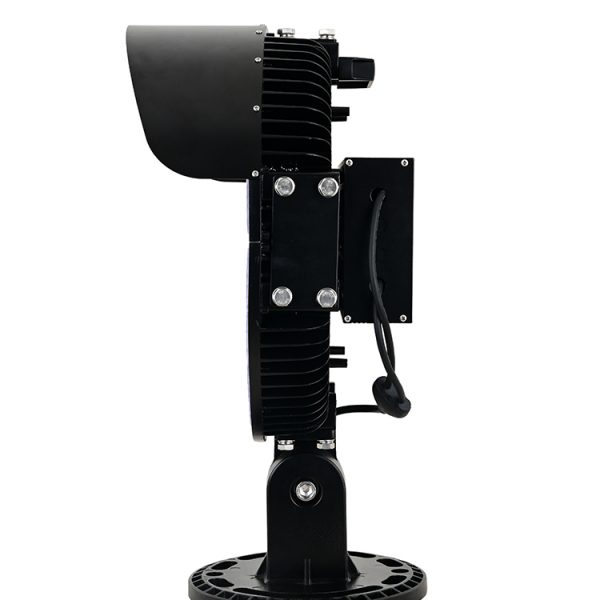

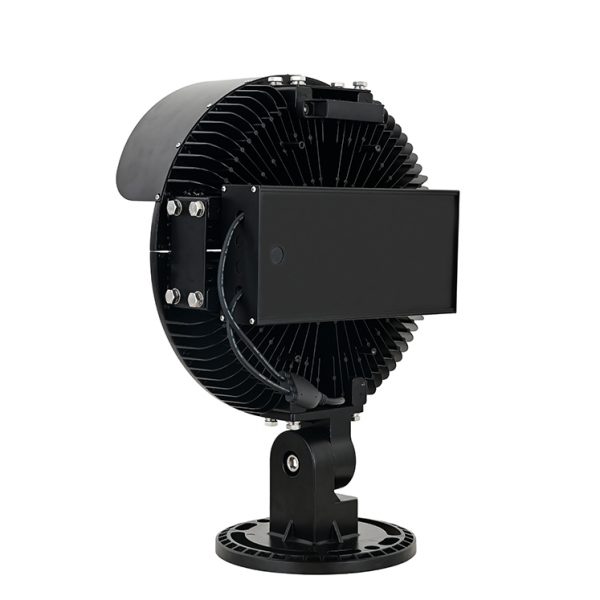

Driver Box
Intelligent temperature control branded driver used with 5 years long time warranty, aluminum drive house with IP67 waterproof, and it can fast conduct the heat from the driver to be out

600W/1200W available.
More suitable for football field,
IP66 waterproof design protect the lamp better.
Every unit is 300W, heat sink independent design makes ventilation.
Not only for stadium lighting, but also can use as high-pole lamp.
20KV surge protection.
Lighter weight, smaller volume save freight cost. More safty during using.
Lumileds 5050 LED has better heat dissipation, provide 130lm/w.
MEANWELL driver with 5 years warranty.
10°/25°/60° beam angle for option.



Factory



Applications

MINSENS LED high power flood light widely used for high mast lighting, stadium lighting, sports court lighting, port lighting, etc..





Packaging & Shipping

Standard export packaging
